Plastic Injection Pipe Fitting Mould for PVC Bend Fitting Mould

Plastic Injection Pipe Fitting Mould for PVC Bend Fitting Mould

Plastic Bend Mould/PVC Bend Mould High quality with reasonable price Mould Making: 1.Samples/Drawing &Requirement from y
Basic Info.
Metal Color Black Metal
Customized Customized
Condition New
Thickness 2mm
Transport Package Wooden Case
Specification ISO9001: 2000
Trademark JZ
Origin China
HS Code 8480719090
Production Capacity 100 Sets/Month
Product Description

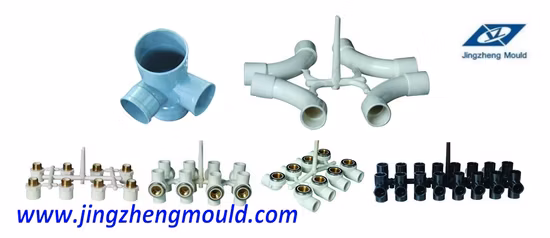

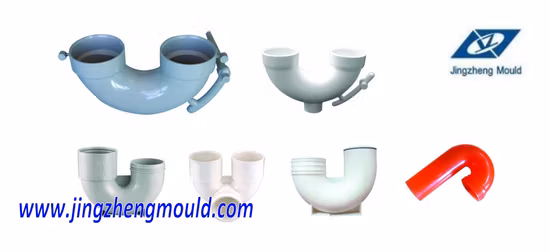

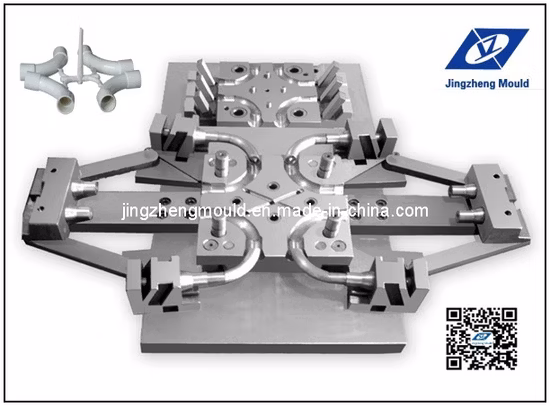

Plastic Bend Mould/PVC Bend Mould
High quality with reasonable price
NamePlastic PVC Bend Mould
Plastic materialPVC
Steel of Cavity & CoreDIN 1.2316
Steel of MouldbaseS50C. LkM standard^ etc
Nos of CavityCustomized
Hardness of Cavity & Core42-45HRC
Hardness of Wear Parts42-48HRC
Core pulling systemMotor /oil cylinder/ stripping plate, angel pin^ etc
Mould AccessoriesDME/HASCO Standard ^
Cooling systemIn core baffle cooling and in cavity plate chain drilling type cooling
Surface finishDiamond polish,
Molding life1.200, 000shots
RunnerCold
Delivery time70 work days
Packingwooden case
PaymentT/T L/C

Mould Making:
1.Samples/Drawing &Requirement from you
2.Mould design:we will Communicate and Exchange the opinion with you after you place order.
3.Material Purchase:Steel cutting and Mould base tooling.
4.Assembling.
5.Inspection of mould:following and controlling the tooling processing.
6.Mould testing:We will inform you the date.Than will send the sample's inspection, report&injection parameters with the sample to you!
7.Your instruction &confirmation for shipment.
8.Ready made mould before packing.
Our advantages:
1.Good experience in mould making since the year of 1998.
2.Patent in collapsible fitting moulds.
3.Machinery core pulling system save cost and increase production efficiency.
4.Perfect core pulling distance within 180mm.
5.Excellent R&D team.(We can offer you 3D mould design with all details within one day.)
6.Efficiency production department.(We can finish Push-Fit fitting mould of size 110mm in stwo cavity with in 45days.)
7.Competitive price in save level of mould manufactuers.
Pls freely contact me for new inquire and further questions!
