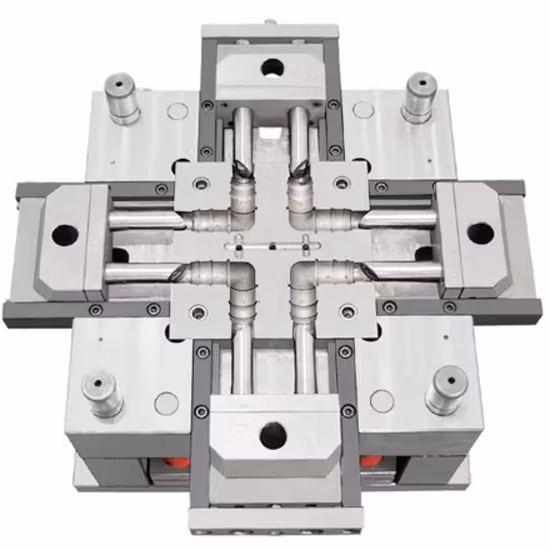

Customized White PVC PPSU PPR Injection Pipe Fitting Mould for Electronic
Customized White PVC PPSU PPR Injection Pipe Fitting Mould for Electronic Specifications1.Professional Newest Design2. C
Basic Info.
Runner | Cold Runner |
Design Software | UG |
Installation | Fixed |
Standard | HASCO |
Customized | Customized |
Mould Injector Way | Ejector Pin, Ejector Plate, Air Valves. |
Surface Treatment | Polish, Etched...Ect. |
Process | CNC, High Speed Carve, EDM, Wire Cut, Drill, Lathe |
Design Softare Ware | Ug, PRO/E, Autocad, Mouldflow...Ect. |
Surface Finish | Diamond Polish |
Gate Type | Direct Gate, Sub Gate, Pin Point and Others |
Mould Hot Treatment | Tempering, Quenching, Nitriding |
Mould Spare Parts | Hasco/Dem/Cumsa/Daido/Mitsumi/Cy |
Runner Type | Cold or Hot |
Name | Pipe Fitting Mould |
Transport Package | Wooden Case |
Specification | To meet customer needs |
Trademark | YS |
Origin | China Zhejiang Huangyan |
HS Code | 8480719090 |
Production Capacity | 90 Sets PPSU Pipe Fitting Mould Per Month |
Product Description
Customized White PVC PPSU PPR Injection Pipe Fitting Mould for Electronic
Specifications1.Professional Newest Design2. Competitive price, high quality.3. Long Life.Product Name | China supplier various plastic pipe fitting, high quality plastic injection pipe fitting mold manufacturer |
Cavity&Core Stee | P20H,718H,2738H,S136,H13 etc. |
Mould Base | LKM,ISM,HASCO,DME |
Cavity | Single/Multi-cavity |
Mould life | 500,000 ~1million shots |
runner type | cold/hot runner |
Delivery time | 30~60day |
The main Mold Steel and Hardness for you reference: | ||||||||
Steel Grade | S50C | P20 | P20HH | 718H | 2738H | H13 | S136 | NAK80 |
Hardness(HRC) | 17-22 | 27-30 | 33-37 | 33-38 | 36-40 | 45-52 | 48~52 | 34-40 |

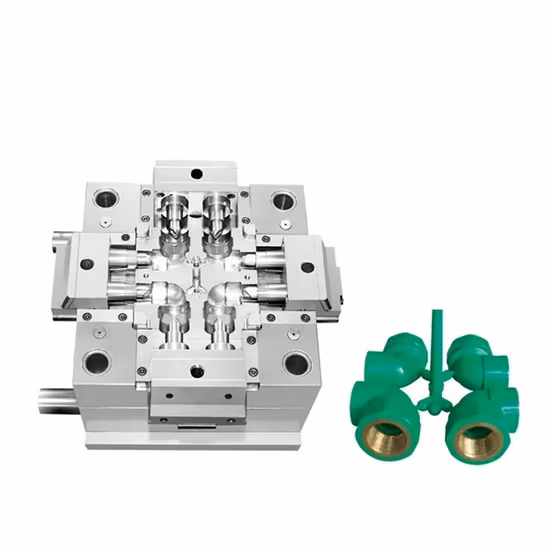

PPR Pipe Fitting Mould

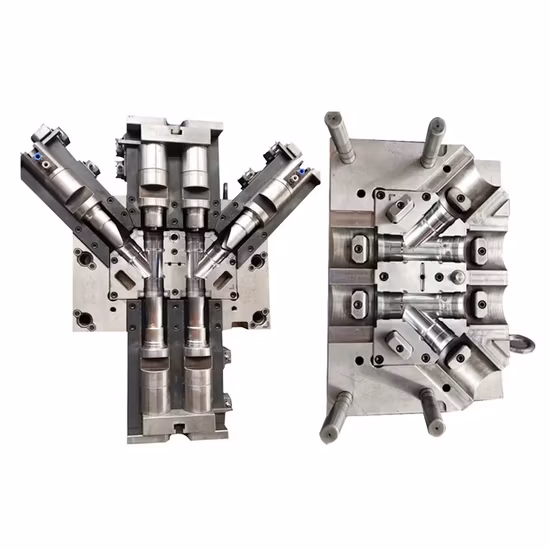

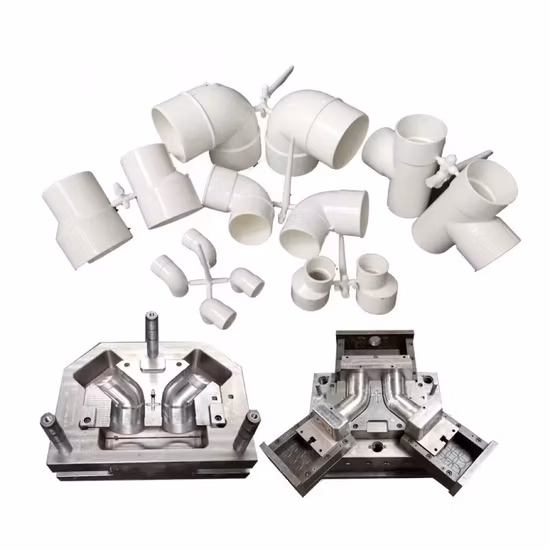

PVC Pipe Fitting Mould
Plastic pipe mould
PPR Pipe Fitting Mould
PPR pipe fittings are used for pipe joints underground and deep in the building facade, which are divided into internal and external teeth (direct, external straight, tee, external three, internal three, small bend, external bend, internal straight, plug, external three, internal three, bridge crossing, different straight, different bend, different three, movable joint, etc.). The mould should have an external core pulling structure, and the best cooling design can speed up the product molding. The insert should preferably be made of stainless steel, it's corrosion resistant and can reach long life time.PVC Pipe Fitting Mould
PVC pipe fittings with thin wall thickness are commonly used for water pipes. Most wire pipe valve connections use a size of 20MM-110MM (direct, elbow, tee, ball valve, three-dimensional tee, three-dimensional four-way, plane four-way, 45 degree elbow, inner wire direct, outer wire direct, cap, pagoda connector). The mould should have an external core pulling structure, and the best cooling design can speed up the product molding. The insert should preferably be made of stainless steel, it's corrosion resistant and can reach long life time.
MOULD MANUFACTURE PROCESSGrinding→ Fly-cutter → CNC Milling→ Drilling→ Lathe→ Boring lathe→ Electric pulse → Fine fly-cutter→ Polish→ Electroplate→ Assemble
Business Procedure
1. | Quoting Price based on customer's request. |
2. | Signing the sales contract/ Stamping Proforma Invoice. |
3. | Starting the 2D/3D drawing of the mould. |
4. | Sending customer mold 3D/2D design drawing for confirmation. |
5. | Starting Manufacturing after design approved by customer. |
6. | Testing mold with noticing customer. |
7. | Delivering the samples for customer's approval. |
8. | Doing final polish or treatment for the mold after samples approved. |
9. | Shipment. |
Taizhou Huangyan Yongsheng Mould Co., Ltd, founded in 2007, is located at Zhejiang province. It is near Hangzhou and Ningbo port. And domestic flights can arrive directly. You can go anywhere freely. Our company covers an area of more than 1, 000 meters. We are specializing in the development, production and sales of no gate hot runner cap mould, cut-free independent self-locking gate perform mould, free-gate valve perform mould, anti-theft cap mould, die cut cap mould, handle mould, bottles mould and daily necessities mould. Now we have had first-class experts and production machines.After many years of efforts and sustained fast developments, we have obtained customers' recognition with our scale, quality and good faith. Now we have got a clear advantage on technologies and equipments levels, quality grades, market share etc. And our core competencies are keeping on being stronger and stronger. It goes without saying that our company will develop steadily, rapidly and healthily. In order to be more professional, solider, stronger and bigger, we insist on perfect quality, good faith and customers first from our foundation, never stopped developing technologies and products.Now our products are popular in domestic market, and become a famous national brand. In oversea market, they are sold to Americas, Europe, Middle East, Africa and Southeast Asia. We will keep on fast development, strengthening personnel training and introduction, developing technologies, enhancing the capability of independent innovation, accelerating new plastic perform development, improving technology progress and industry upgrade, and carry out "going-out" strategy seriously, take part in the competition actively to open much wider market all over the world."YONGSHENG- keeps up with times and makes friends with all over the world"
Q:Could I have a sample to check the quality ?
A:Yes,for the ready in stock models, we could send out samples immediately, For out of stock models, we provide sampling service according to your requirement.
Q:How does your factory do regarding quality control?
A:Quality is priority! And all of raw material we used are environmental-friendly; Quality control department specially responsible for quality checking in each process.
Q:How do you make our business long-term and good relationship? A:We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them.
Q:What's your payment term?
A:T/T, Paypal, Or Alibaba trade assurance. Q:How much is the shipping cost? A:It depends on the total weight of your order and the way you chose for shipping.There are International Express Door to Door,Airline Company and Ocean Transportation available.
Q:When is the delivery time? A:According to your order quantity,the delivery time will be different. but all based on what materials what do you need.We will be very surportive in delivery if client has unchangeable promotion plan.
